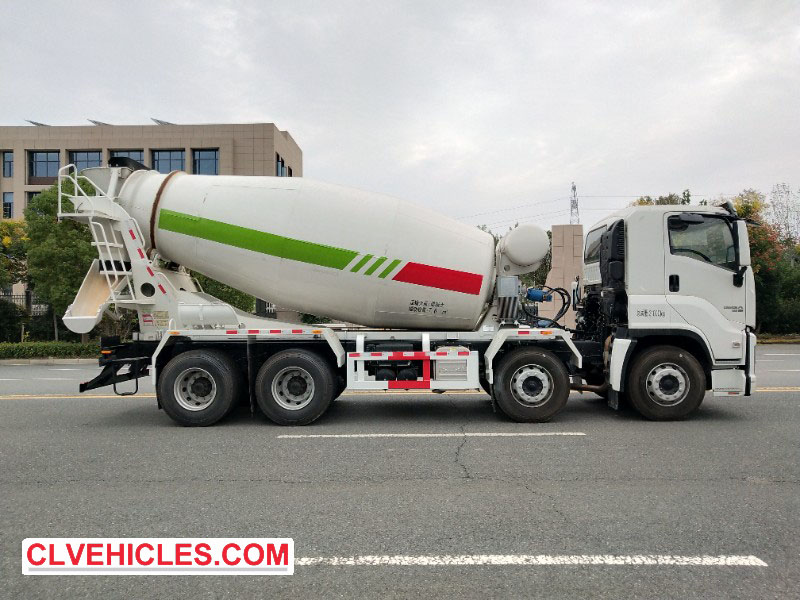

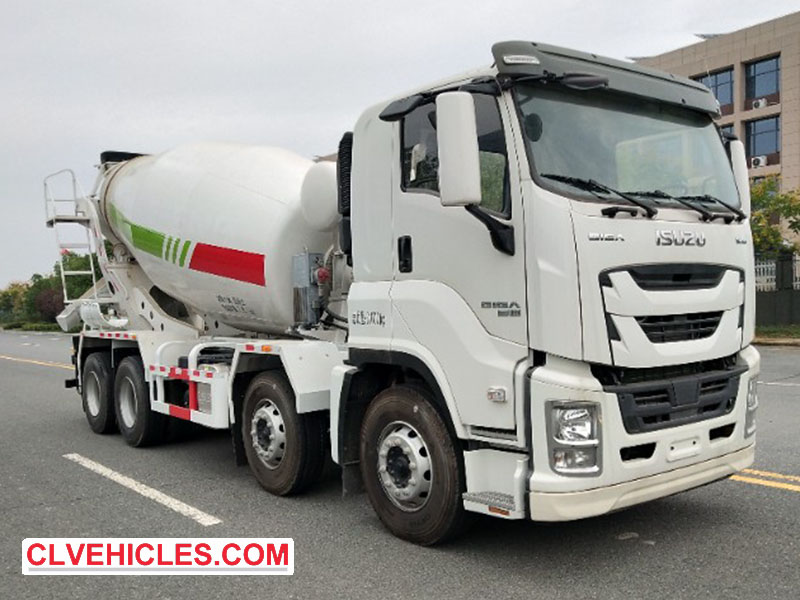

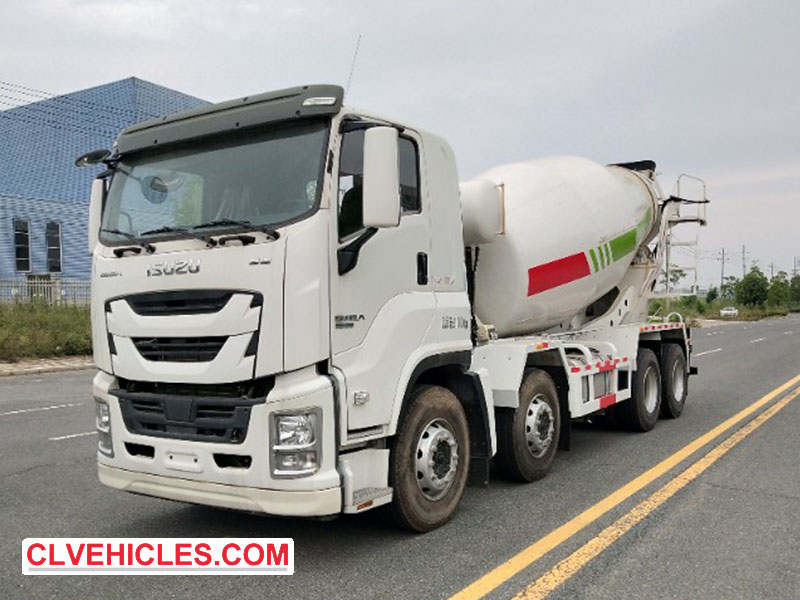

Introduction to ISUZU concrete mixer truck
With the rapid development of domestic infrastructure projects, concrete has become the backbone of modern construction. The efficient transportation of ready-mixed concrete relies heavily on professional concrete mixer trucks, which are an important link between mixing plants and construction sites. These advanced vehicles combine automotive mobility with precise mixing technology to ensure that concrete maintains optimal consistency during transportation.
The core components of a ISUZU concrete mixer truck
1. Truck mixer chassis: the foundation
Function: Serves as the structural foundation and mobile platform
Features:
- Heavy-duty frame designed specifically by vehicle manufacturers
- Designed to support vehicle weight and concrete payload
- Equipped with reinforced suspension for increased carrying capacity
Importance: Determines the truck's carrying capacity and road performance
2. Power Take-off (PTO) system
How it works:
- Extracts engine power without affecting vehicle operation
- Transmits power through couplings to drive hydraulic pumps
Main functions:
- Rotates the mixing drum
- Provides power for all mixing operations (charging, mixing, unloading)
Technical advantages: Maintains full functionality of the vehicle while operating the mixing system
3. Mixing drum: the heart of the system
Structural design:
- Unique double cone shape with a cylindrical center
- Made of high-grade wear-resistant steel
- Dual continuous helical blades for optimal performance mixing
Innovative features:
- Secondary mixing blades between the main helices for enhanced homogenization
- Precision welded raceways for smooth rotation
- Reinforced rear cone with annular support ring
Capacity options: Available in single or double cone configurations depending on capacity requirements

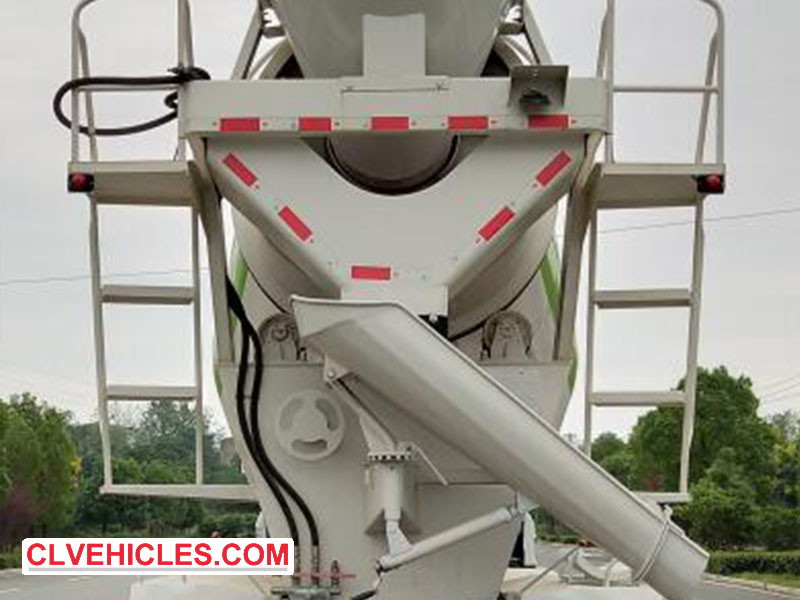

4. Material handling system
Loading components:
- Specially designed wide-opening feed hopper
- Reinforced chute system for precise material guidance
Discharging mechanism:
- Adjustable sliding discharge chute
- Hydraulic lifting system for optimal positioning
- Quick release mechanism for easy cleaning
Positioning: Strategically mounted at the rear for efficient field operation
5. Support frame system
Structural integration:
- Heavy-duty subframe structure
- U-bolt mounting system for secure chassis connection
Vibration control:
- Special rubber shock-absorbing strips
- Designed to absorb operational stresses
Load management: Evenly distributes the weight of concrete on the chassis
6. Rotary drive system
Power transmission:
- Heavy-duty gear reducer
- Precision-engineered gear transmission with stable torque
Performance features:
- Variable speed control function
- Overload protection mechanism
- Sealed lubrication system for durability
The modern concrete mixer truck embodies the perfect combination of mechanical engineering and practical functionality. Its carefully engineered components work together to:
- Maintain concrete quality during transport
- Ensure reliable operation in demanding conditions
- Efficiently move materials on the job site
- Extend service life through rugged construction
Understanding this advanced system architecture helps operators maximize performance while enabling maintenance teams to properly care for these important construction vehicles. As infrastructure demands grow, continued advancements in mixer truck technology will further improve their efficiency and reliability on the job site.
