Advanced Street Cleaning Solutions

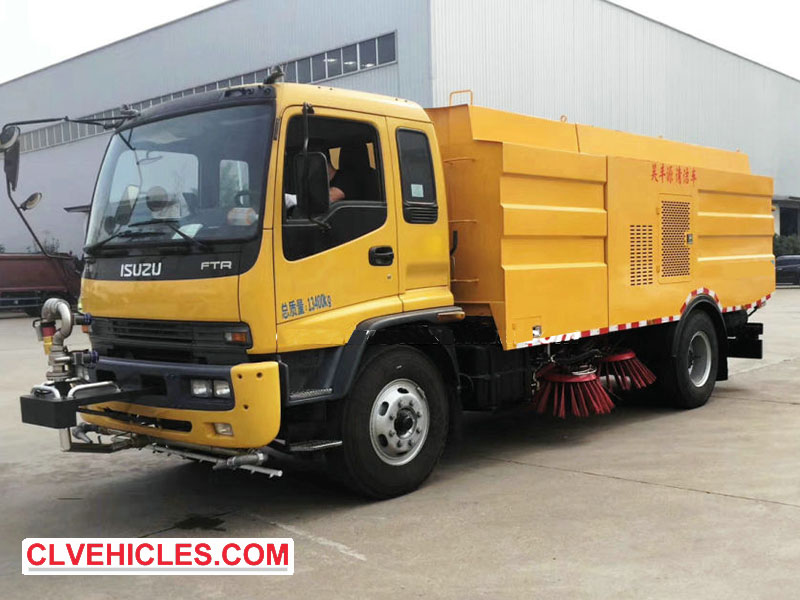

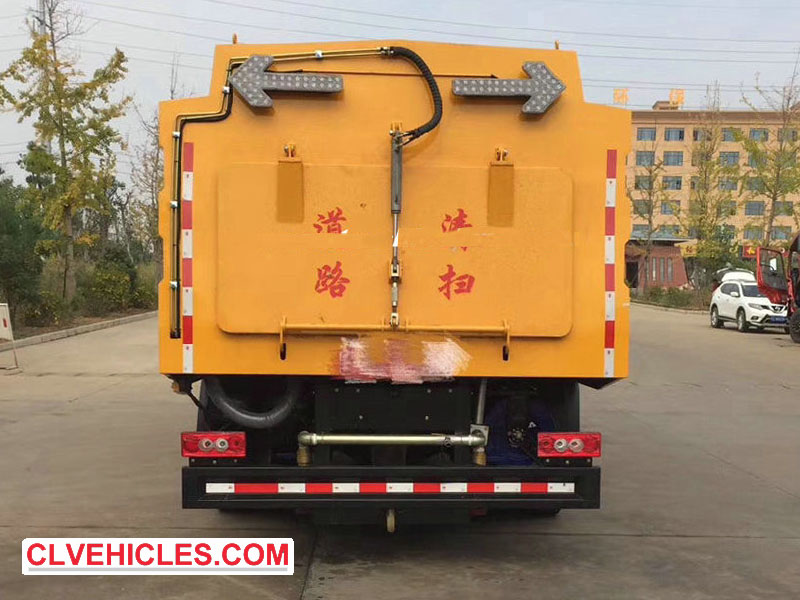

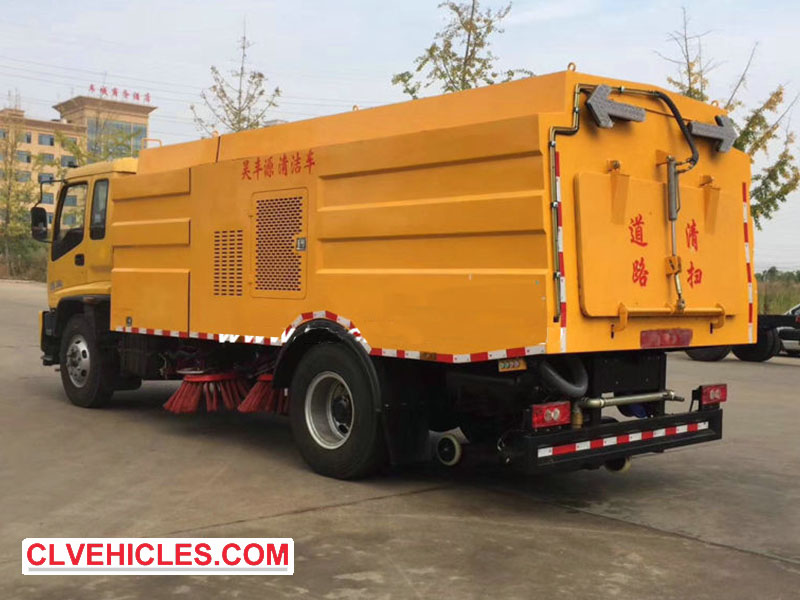

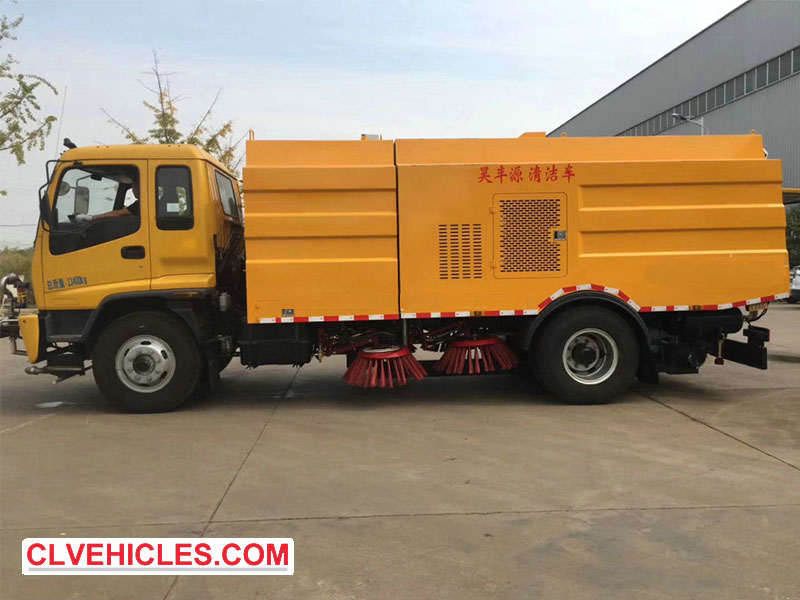

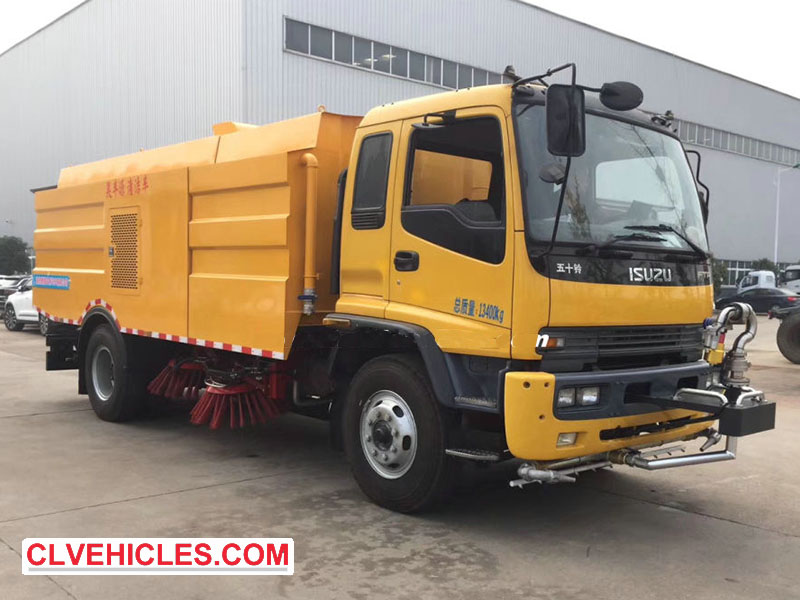

CLVEHICLES.COM proudly introduces our self-developed ISUZU road sweeper truck, an advanced cleaning system designed for municipal and industrial applications. Based on the sturdy ISUZU F-Series chassis, this comprehensive cleaning system integrates multiple advanced technologies to provide excellent street maintenance performance.
Core System Components
1. Power System Configuration
Main Chassis: ISUZU F- Series
Auxiliary Power Unit:
- Cummins 4-cylinder turbocharged diesel engine
- 170 hp output
- Fan and water pump system dual-function drive
2. High-Efficiency Cleaning System
Air Filtration System:
- 8.0 High-Pressure Centrifugal Fan
- Maximum Air Volume: 23,500 m³/h
- Optimized for Dust Control and Debris Collection
Water Pressure System:
- PF36 Plunger High-Pressure Pump
- Working Pressure Up to 10MPa (1,450 psi)
- Precise Flow Control for Best Cleaning Effect
Innovative Storage Solutions
1. Water Management
Large-Capacity Water Tank:
- 9m³ Volume
- Space Optimized Design
- Integrated filtration system
2. Waste collection
Stainless steel trash can:
- 304 grade corrosion-resistant structure
- Hydraulic dumping mechanism
- High-pressure nozzle self-cleaning system
- Automatic removal of residues when unloading
Precision cleaning technology
1. Brush system
Independent broom control:
- Optional left and right operation
- Multiple working modes (single side/full sweep)
- Wear-resistant bristle material
Performance advantages:
- Reduced sweeping times
- Reduced operating costs
- Extended service life
2. Advanced nozzle system
Wide range collection:
- 2,418 mm suction port
- Total working width of more than 3.5 meters
Adjustable components:
- 4 height-adjustable nozzle wheels
- Optimal ground clearance maintenance
Integrated water spray system:
- Fixed water spray bar
- High-pressure cleaning nozzle
- Design to minimize secondary pollution
Intelligent control system
1. Hydraulic operation
Multi-function control:
- Broom lift/rotate
- Nozzle height adjustment
- Trash can door operation
- Trash can tipping mechanism
Open system design, higher reliability
2. Electronic management
One-touch operation:
- Simplified start/stop control
- System status monitoring
Low-pressure flushing:
- PTO driven water pump
- Integrated with chassis transmission
Performance advantages
1. Improved cleaning efficiency
- Combination of mechanical and hydraulic sweeping
- Large-capacity suction system
- Precise water spray control
2. Economic operation
- Reduced water consumption
- Reduced maintenance requirements
- Extended component life
3. Environmental protection
- Effective dust suppression
- Minimize water waste
- Meet clean emission standards
4. Easy to operate
- Ergonomic control interface
- Automation function
- Easy maintenance access
This comprehensive road cleaning system represents the latest advancement in municipal maintenance equipment, combining powerful performance with intelligent design to achieve superior cleaning results in urban environments. The integration of multiple cleaning technologies ensures optimal performance in a variety of road conditions and debris types.
